90,000psi pump can increase cutting efficiency by 50% - 70% and improve productivity while saving abrasive
1. Cutting of super thick materials
2. Metal thickness up to 300mm
3. Efficient cutting, saving 50% – 70% of the time
4. Save abrasive and cost

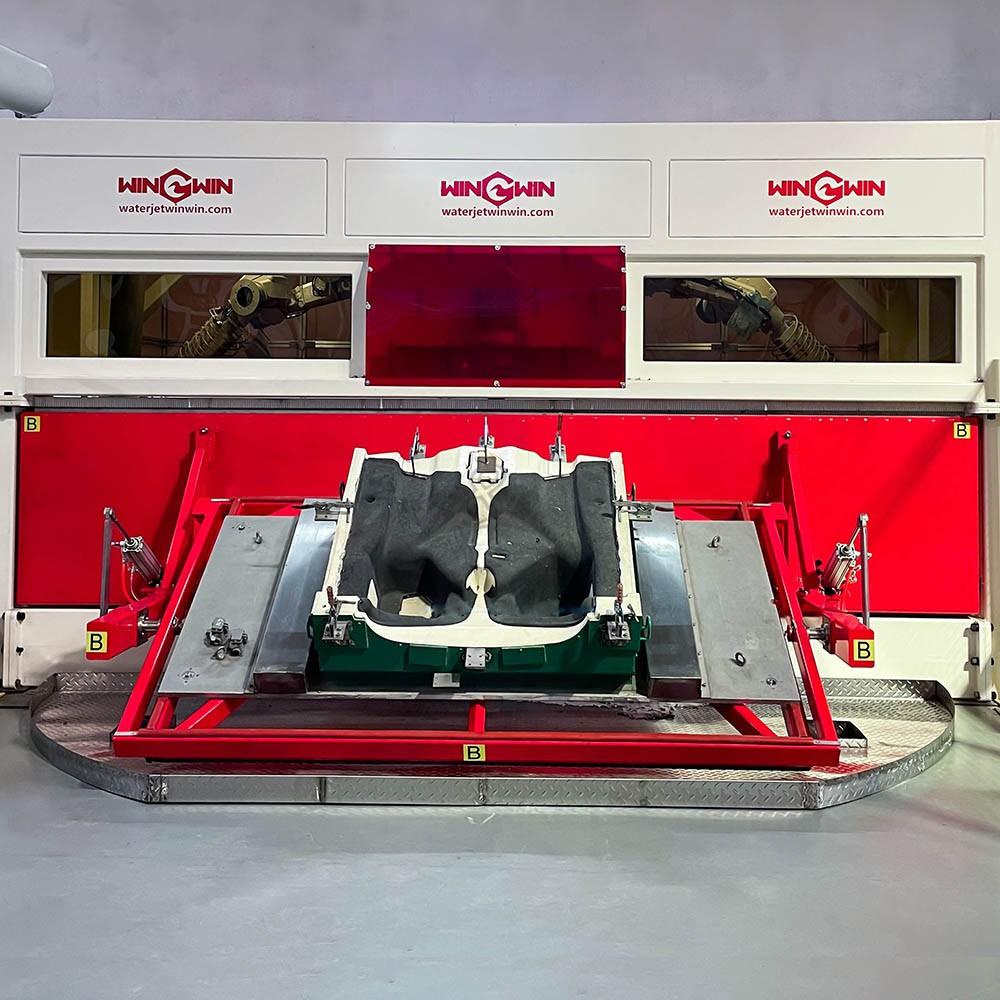

The applications: cutting of automotive interior, aerospace, shipbuilding, military, composite materials, etc.

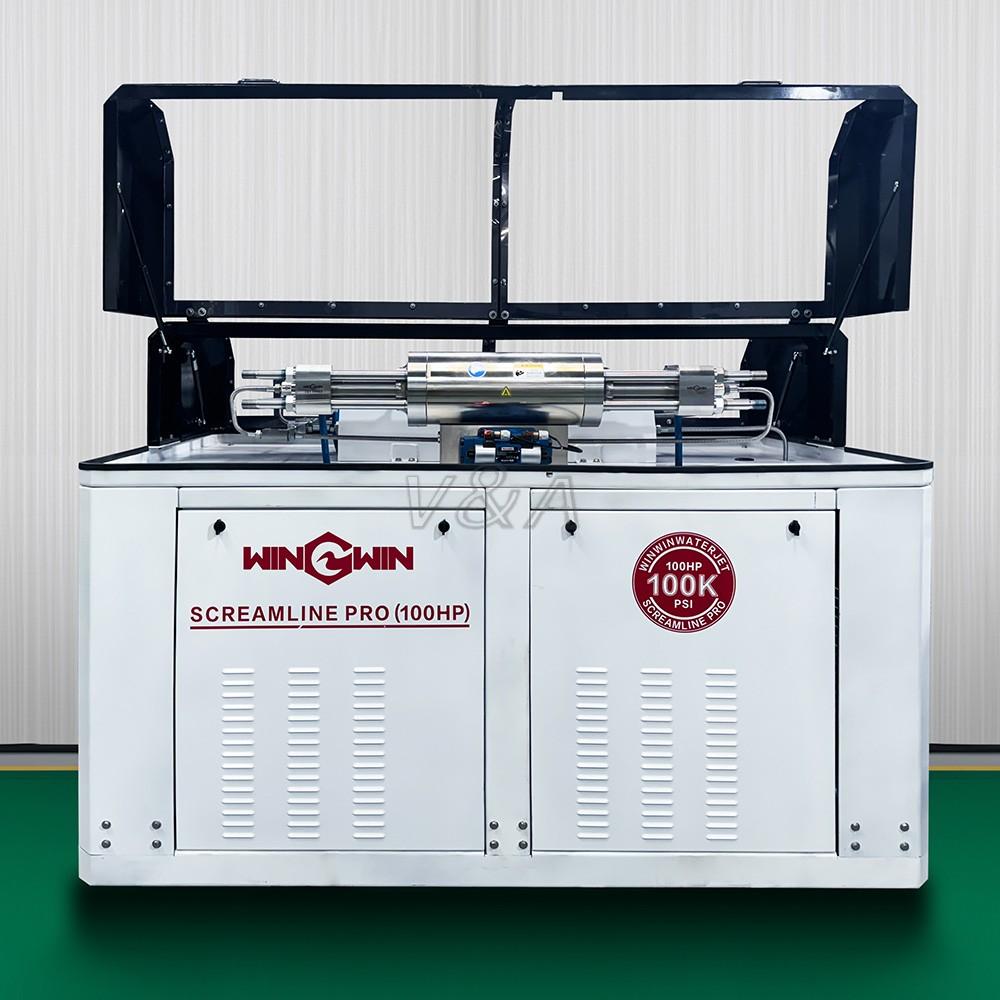

Our 90,000psi standard and servo system ultra-high pressure pumps represent the new quality standard of our waterjet system. The newly designed end bell hard seal (HSEC) pressure intensifier determines the trend of the waterjet industry.

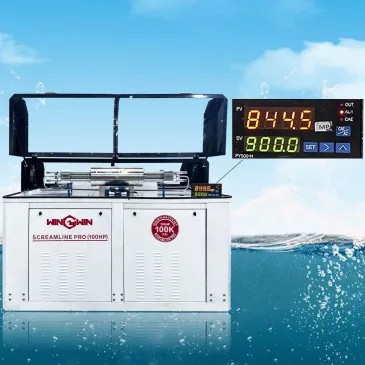

SCREAMLINE PRO standard type and servo type can help you provide ultra-high pressure for pure water and abrasive cutting applications, no matter how your system is designed: the standard type and servo type of SCREAMLINE PRO can be installed and operated independently, or can be operated remotely through any central control system.
1,UHP intensifier pump to achieve ultra-thick material cutting
2,Up to 300mm metal thickness
3,Efficient cutting, saving 40% of time
1.Long service life seals guaranteed for 500 hours (Terms & conditions apply)
2.Metal-to-metal seal design is more durable with no wear in the high pressure cylinder bore
3.Tie Rod Design with hydraulic loading tensioner guarantees longer lifetime of seals
4.Stainless steel liner adds extra protection to ceramic plunger for longer life
Brand | WINWIN | Model | Scremlin Pro |
Name | 90,000psi waterjet pump | Temperature | 5-40°C |
Pressure Range | 90,000psi (6.200 bar) | Oil Level and Temperature Control | Sensor |
Low Pressure Filter | 10 µm abs. | Application | Water jet cutting system |
Voltage | 380V | Rated power | 60hp (45kw) |
Attenuator capacity | 1.6L | Nom. Current at 480V/60Hz (Full Load Amp) | 70 A |
Maximum water flow | 0.78 gal/min (2.9 lpm) | Min. Cutting Water Inlet Flow | 4.0 gal (15.1 L) |
Hydraulic Tank Capacity | 211L | Size (L * w * h) | 2.2m*1.4m*1.5m |
Weight | 1.5T |
60,000psi vs. 90,000psi Comparison
The diagrams shows the 90,000PSI pumps compared to standard 60,000PSI (50hp) waterjet pumps. The data demonstrates when cutting 1 inch aluminum at 90,000PSI, there is a significant improvement in productivity,
Lower cost per part and substantial abrasive savings.
