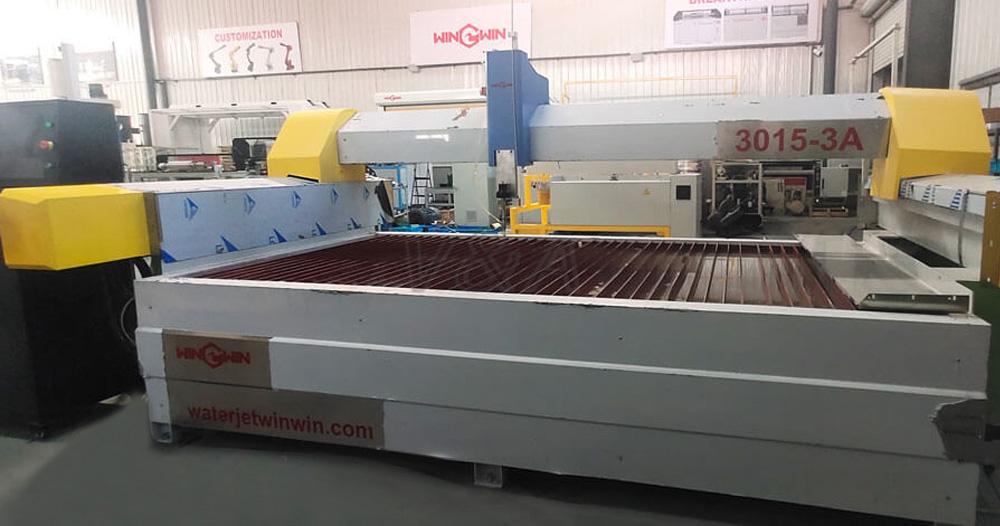

The 3 axis waterjet cutting machine can be used to cut a wide range of materials with precision and high speed.
3 axis 2015 water cutting equipment, is basic waterjet cutting machine, the cutting head is vertical cutting, can not swing, suitable for cutting metal, glass, rubber etc, equipped with WW60JET intensifier pump, double intensifier, large water stream, working stable, advanced technology. 2015 gantry cutting platform is oil-immersed structure, with all stainless steel protection, advanced technology, accuracy cutting and reliable. please contact us for more details

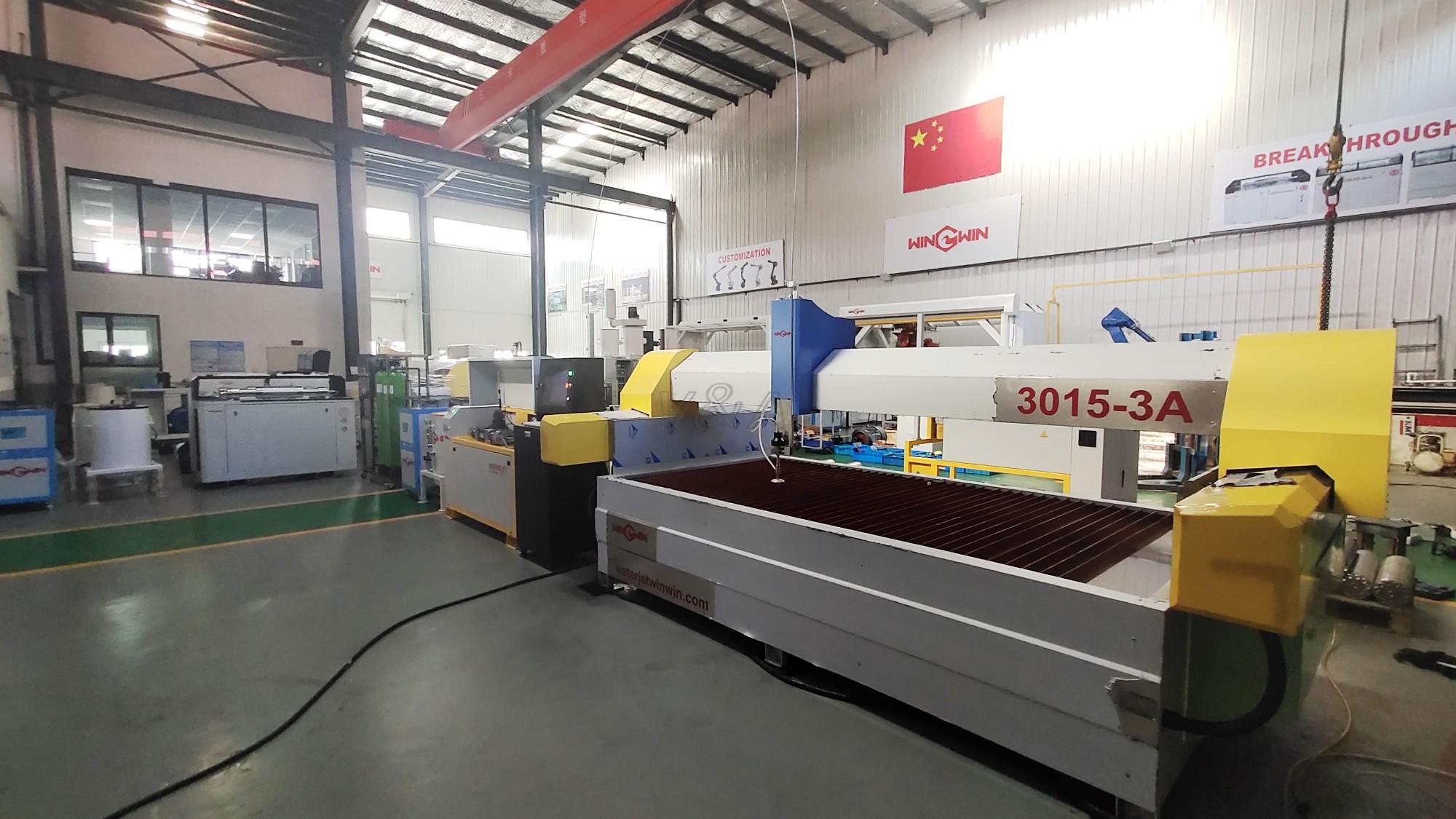

Gantry Structure Cutting Table
The cutting table adopts an Oil-Immersed structure to reduce the wear of the lead screw and the slider. It has a long service life, a full-protection structure and better sealing. The use of stainless steel materials prevents metal corrosion. It is as new for ten years.

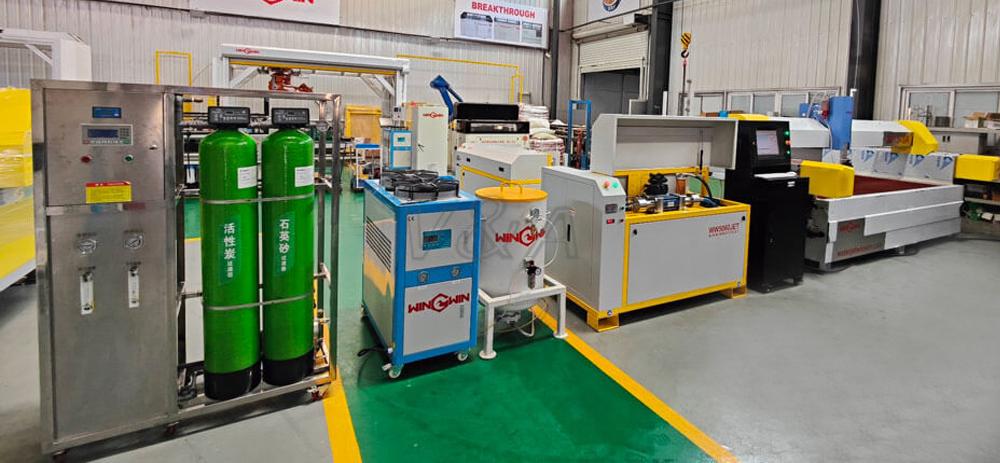

WW5060JET intensifier pump is highly versatile intensifier pump, American imported core components, Sandvik high pressure pipelines,Omron PLC electrical components. This pump is a basic, economic intensifier pump, widely used in the market, large wearing parts seller, simple to use, the pressure can be up to 330Mpa, often used in marble cutting, metal cutting, glass cutting, rubber cutting and other industries.
3 axis waterjet cutting has high efficiency, fast cutting speed, vertical cutting, the cutting head has no vulnerable parts such as rotating shaft, simple and practical, suitable for vertical cutting process.air pressure control water switch valve, effectively improving the service life of water switch valve needle.
Waterjet abrasive garnet is widely used in abrasive waterjet cutting machines. The abrasive garnet by WIN-WIN is high-end which can increase the cutting speed. And in the same time, it can cut thick materials by using 80 mesh garnet. The abrasive garnet is added in the application of water jet, the section is smooth, the accuracy is also improved, and there is no limit on the thickness of the plate.
Weihong waterjet cutting system is a high comprehensive evaluation of water cutting system, easy to operate, stable program control, Weihong system has its own drawing software, compatible with CAD/CAM/DXF/G, with standard USB interface, network cable port and other common ports, power, sand and other unexpected faults caused by shutdown, can continue cutting at the breakpoint after starting up, cutting time estimation, in the case of simulating cutting a variety of graphics cutting, can arrange the sequence of cutting, multi-starting point cutting, Nc Studio software can be installed on the user’s computer for installation and learning.
The auto abrasive delivery system continuously supplies abrasive to the abrasive regulator tank on the cutter head by the large abrasive tank.Without any electrical components, it is free of maintenance, zero defects. Reasonable design, make this large-capacity abrasive tank cut 8-10 hours without interruption.
