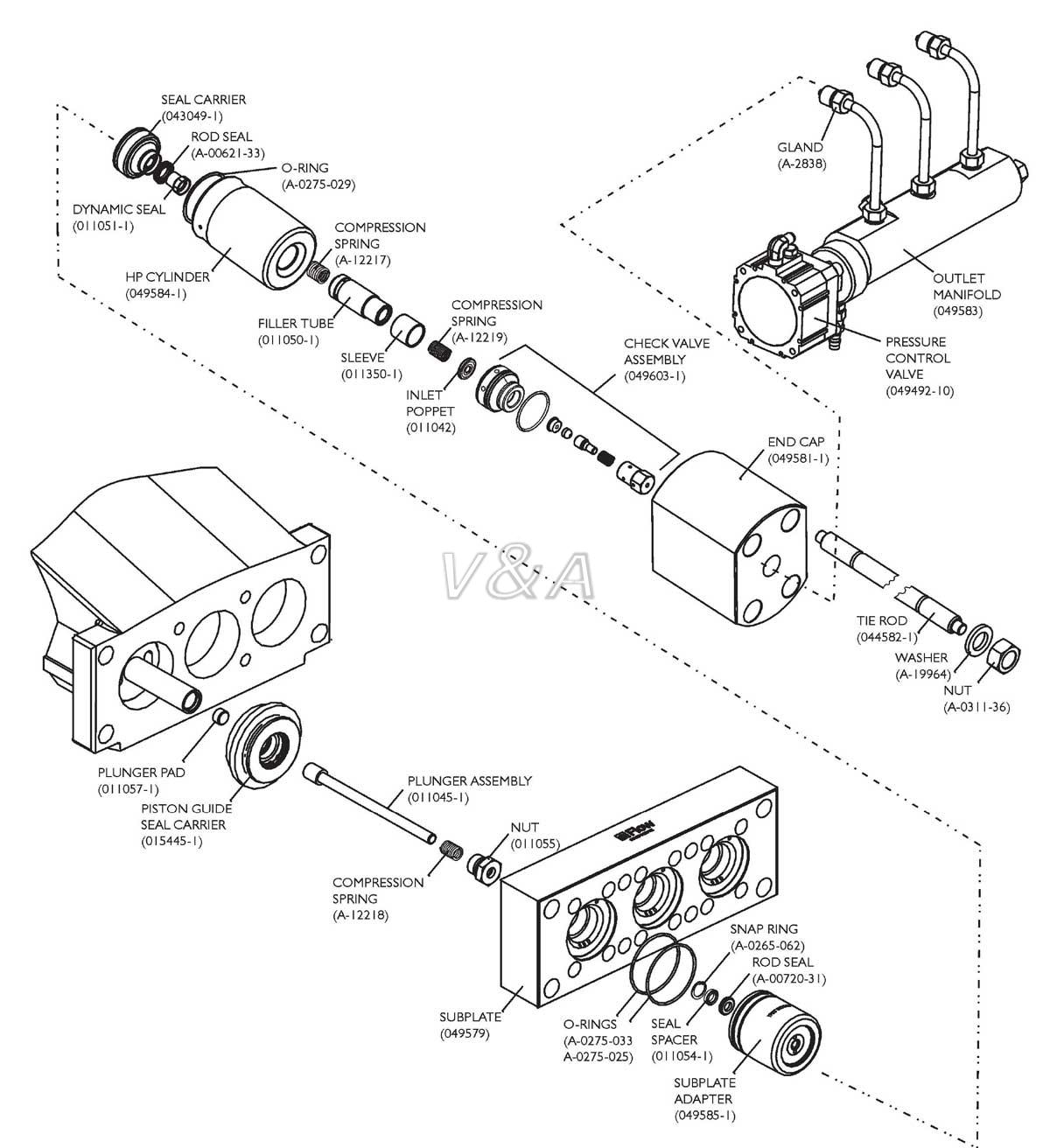

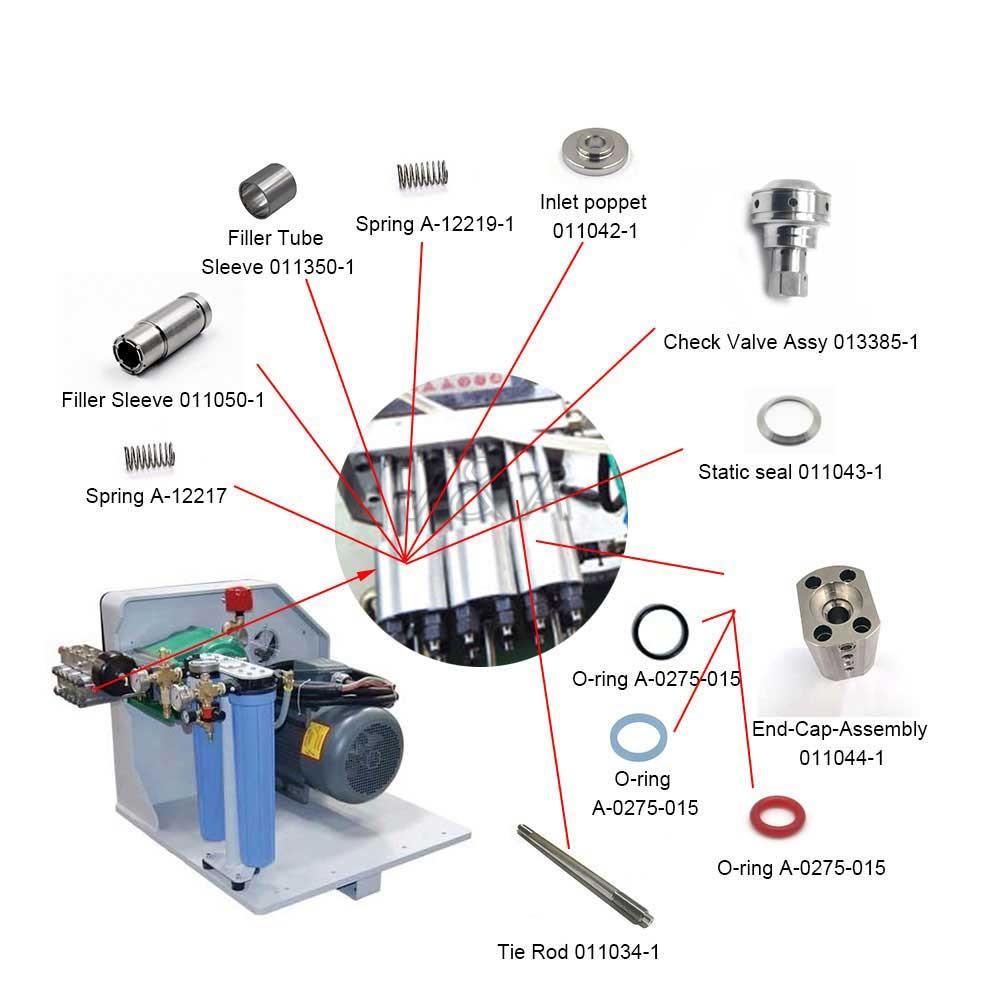

FLOW Waterjet Direct Drive Pump Parts
Item | Part Number | Description | Item | Part Number | Description |
1 | A-2838 | Gland | 16 | 011051-1 | Dynamic seal |
2 | 049583 | Outlet manifold | 17 | A-00621-33 | Rod seal |
3 | 049492-10 | Pressure control valve | 18 | 043049-1 | Seal carrier |
4 | A-0311-36 | Nut | 19 | 049585-1 | Subplate adapter |
5 | A-19964 | Washer | 20 | A-00720-31 | Rod seal |
6 | 044582-1 | Tie rod | 21 | 011054-1 | Seal spacer |
7 | 049581-1 | End cap | 22 | A-0265-062 | Snap ring |

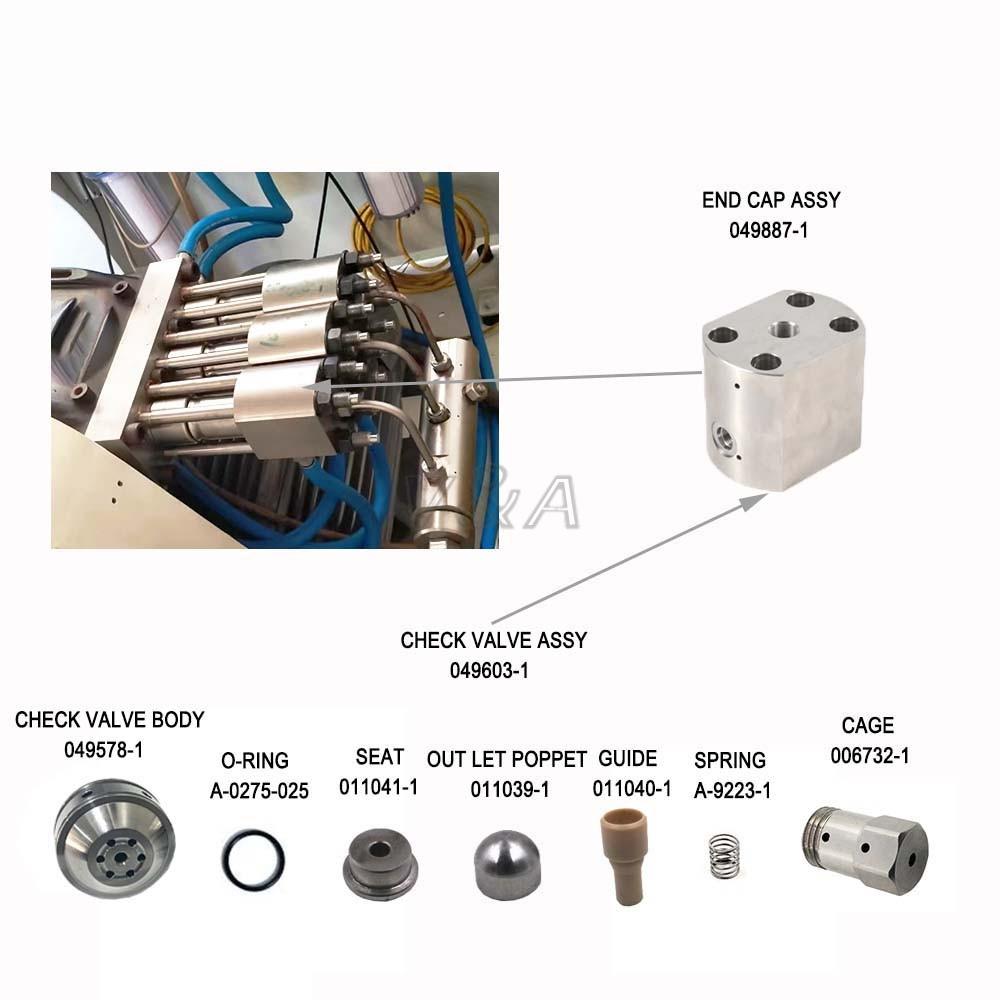

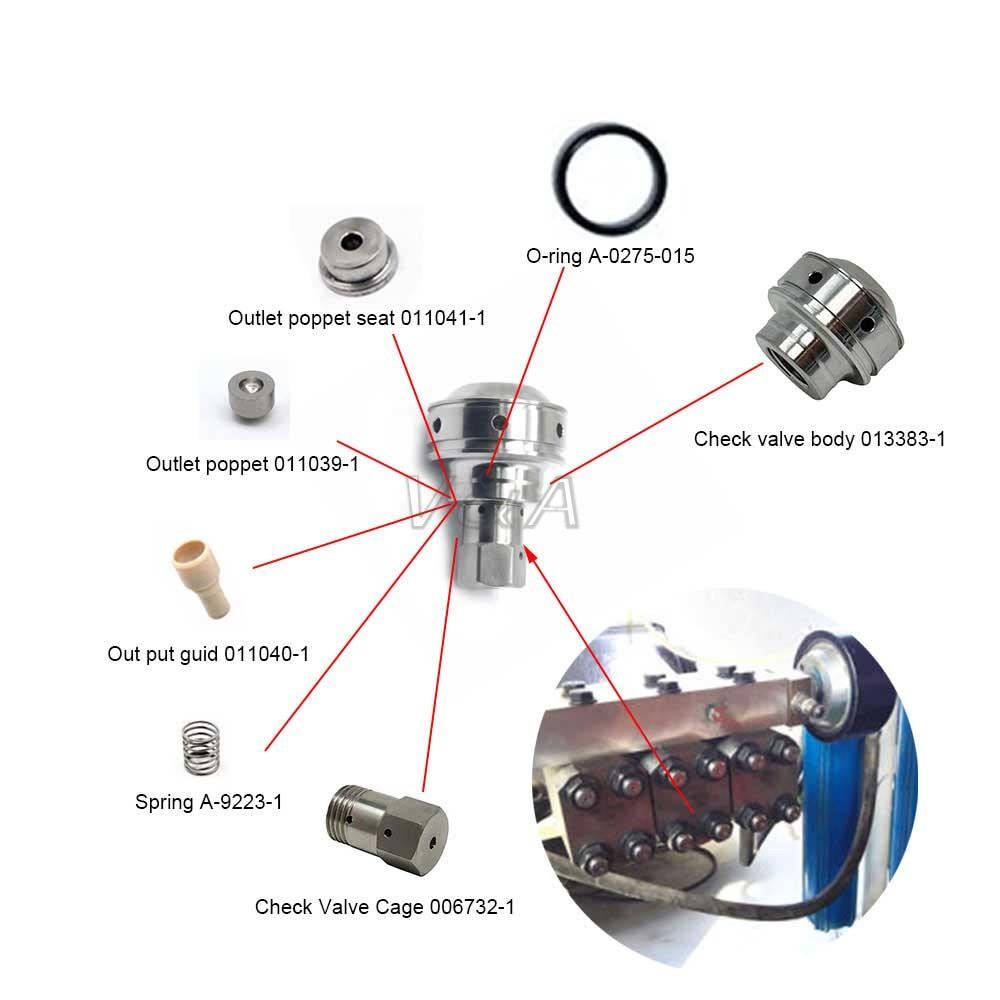

8 | 049603-1 | Check valve assembly | 23 | A-0275-033 A-0275-025 | O-ring |
9 | 011042 | Inlet poppet | 24 | 049579 | Subplate |
10 | A-12219 | Compression spring | 25 | 011055 | Nut |
11 | 011350-1 | Sleeve | 26 | A-12218 | Compression spring |
12 | 011050-1 | Filter tube | 27 | 011045-1 | Plunger assembly |
13 | A-12217 | Compression spring | 28 | 015445-1 | Piston guide seal carrier |
14 | 049584-1 | HP cylinder | 39 | 011057-1 | Plunger pad |
15 | A-0275-029 | O-ring |
