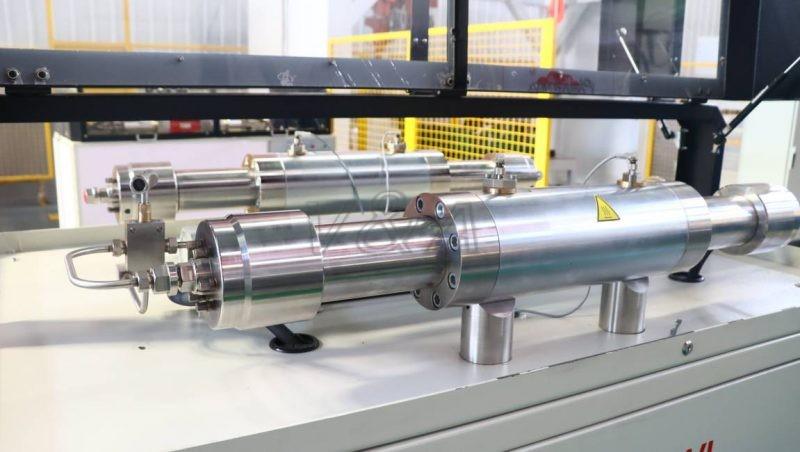

Configuration of servo motor + 2L accumulator + standard dual intensifier, The stability of the whole system is improved by 30%, and the two intensifiers can quickly Quick exchange to ensure 24-hour continuous operation.
Alternating Work from one to another, continuously work 24/7 and no down time. It is more prolific and efficient than traditional single intensifier.Stable working pressure, fast reaction, low fluctuation of waterjet cutting pressure.
Servo motor can save energy and power. It utilizes step power consumption and intermittent time period to achieve less power consumption.Optimized motor efficiency, reduced electrical consumption.Servo motor to oil pump, power-cost 15% reduction.The servo pump has low noise and low heating, and the working noise of the servo pump is less than 63 dB.
Equipped with independent variable pump to make zero pressure wait – low pressure start – high pressure operation.Heat is not generated by moving oil around the circuit when no actuator work is being done.It produce energey only when it is required.
Brand | WINWIN | Model | SL-VI (50HP) |
Name | Water jet servo motor intensifier pump | Temperature | 5-40°C |
Working pressure | 420Mpa | Driving mode | Servo motor |
Material | Material | Application | Water jet cutting system |
Voltage | 380V | Rated power | 50HP |
Attenuator capacity | 2L | Continuous working pressure | 320Mpa-380Mpa |
Maximum water flow | 4.8L/min | Number of orifices | 1-5 |
Tank volume | 150L | Size (L * w * h) | 1.7m*1.1m*1.4m |
Weight | 1.2t |

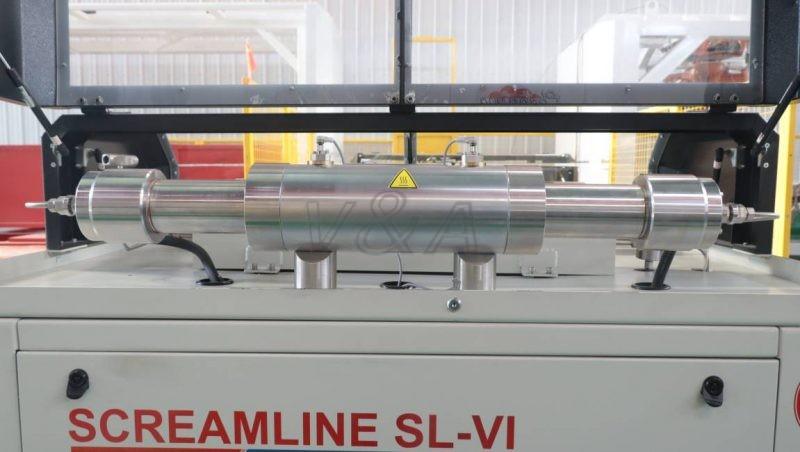

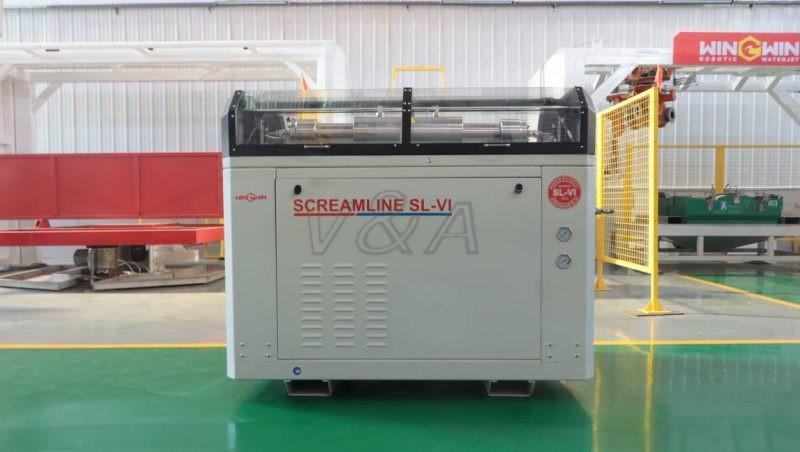

SCREAMLINE SL-VI 50HP can help you provide ultra-high pressure for pure water and abrasive cutting applications, no matter how your system is designed.
3D touch screen to observe the dynamics of supercharger core at anytime.Touch screen design, display the current oil pressure and temperature and other parameters, display the operation of the core components during operation, you can clearly understand the current position of everything
Dual filter system is used for oil inlet and return of oil pump to ensure the quality of oil.Precise filtration system, high-quality filtering elements and multi-stage filtration with gradual precision.Equipped with automatic temperature control system, and high quality main components.
