Screamline Pro

Our 90,000psi standard and servo system ultra-high pressure pumps represent the new quality standard of WIN-WIN waterjet system. The newly designed end bell hard seal (HSEC) pressure intensifier determines the trend of the waterjet industry.

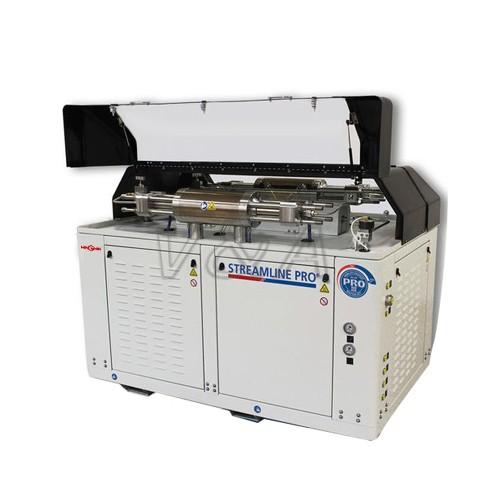

Screamline Pro 90,000psi Intensifier Pump

Our 90,000psi standard and servo system ultra-high pressure pumps represent the new quality standard of WIN-WIN waterjet system. The newly designed end bell hard seal (HSEC) pressure intensifier determines the trend of the waterjet industry.

SCREAMLINE PRO standard type and servo type can help you provide ultra-high pressure for pure water and abrasive cutting applications, no matter how your system is designed: the standard type and servo type of SCREAMLINE PRO can be installed and operated independently, or can be operated remotely through any central control system.


1,UHP intensifier pump to achieve ultra-thick material cutting

2,Up to 300mm metal thickness

3,Efficient cutting, saving 40% of time

90K Waterjet Intensifier Pump

1,Long service life seals guaranteed for 500 hours (Terms & conditions apply)

2,Metal-to-metal seal design is more durable with no wear in the high pressure cylinder bore

3,Tie Rod Design with hydraulic loading tensioner guarantees longer lifetime of seals

4,Stainless steel liner adds extra protection to ceramic plunger for longer life

Brand

WINWIN

Model

Scremlin Pro

Name

90,000psi waterjet pump


Temperature

5-40°C

Pressure Range


90,000psi (6.200 bar)

Oil Level and Temperature Control


Sensor

Low Pressure Filter

10 µm abs.

Application

Water jet cutting system


Voltage

380V

Rated power

60hp (45kw)

Attenuator capacity

1.6L

Nom. Current at 480V/60Hz (Full Load Amp)

70 A

Maximum water flow

0.78 gal/min (2.9 lpm)

Min. Cutting Water Inlet Flow

4.0 gal (15.1 L)


Hydraulic Tank Capacity

211L

Size (L * w * h)

2.2m*1.4m*1.5m

Weight

1.5T



60,000PSI Vs. 90,000PSI Comparison

 The diagrams shows the Win Win 90,000PSI pumps compared to standard 60,000PSI (50hp) waterjet pumps. The data demonstrates when cutting 1 inch aluminum at 90,000PSI, there is a significant improvement in productivity,

lower cost per part and substantial abrasive savings.
