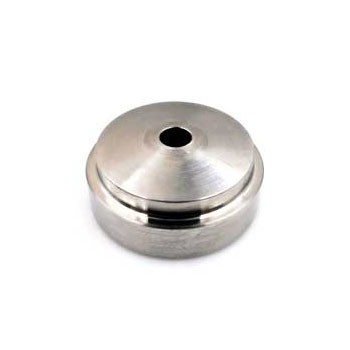

Valve seat CP022046/593

Waterjet valve seat installde on the BFT water jet cutting intensifier pump.It’s installed into the lense and union pressure side.

The surface of both side is sealed, which required high precision, recommend to use torque spanner when installed according to the standard requirement, not be too tight, which will be easily cause eccentric or uneven force. Valve seat is installed with high pressure components, it's recommended to be replaced together with the high pressure component, to reduce the failure rate, the surface contacted with the steel ball part can be 40-60 beats per minute, So the material is very important, if there is pressure instability, need to replace the steel ball and high pressure valve pad.

The related parts：Union suction side CP022043/844，Union pressure side CP022044/844, Lense CP022042/593，Valve Seat CP022046 593，Valve Insert CP022045-775，Ball K016/660，Safety Bolt CPO22052/220
