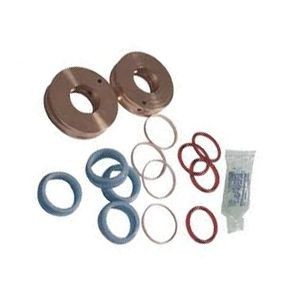

302004-2 HP Seal Kit 40K
| Item | Part Number | Description | Item | Part Number | Description |
| 1 | 20458305 | End Cap | 11 | 20457912 | Plunger |
| 2 | 20457399 | High Pressure Cylinder | 12 | 20458062 | Plunger Retainer |
| 3 | 20458299 | End Bell, LH | 13 | 20458869 | Hydraulic Piston Assembly |
| 4 | 20458302 | End Bell, RH | 20457966 | Hydraulic Piston | |
| 5 | 20458191 | Tie Rod | 20458821 | Rebuild Kit, Piston Rings | |
| 6 | 20460489 | Hex Nut | 20460216 | Seal | |
| 7 | 20457414 | Hydraulic Cylinder | 14 | 20458170 | Spacer, Hydraulic Seal |
| 8 | 20458161 | Backup Sleeve | 15 | 20458908 | Sealing Head Assembly |
| 9 | 20458773 | Rebuild Kit, High Pressure Seal Assembly | 16 | 20460252 | Snap Ring |
| 20457990 | Seal Buttress | 17 | 05202930 | Snap Ring | |
| 20458113 | High Pressure Seal | 18 | 20457267 | Inlet Water Nipple | |
| 20457393 | Seal Hoop | 20457159 | Adapter, Quick Disconnect | ||
| 20460108 | O-Ring | 20459025 | O-Ring, Quick Disconnect | ||
| 10 | 20458797 | Rebuild Kit, Hydraulic Seal Assembly |
