BFT Waterjet Head Parts

BFT Waterjet Head Parts

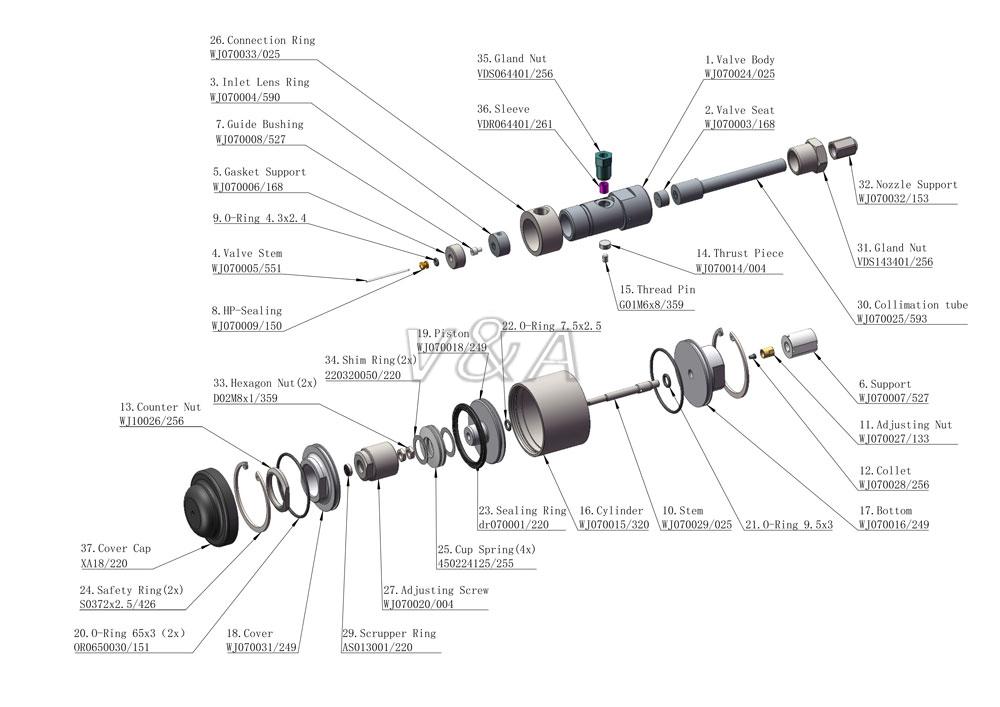

Item

Part Number

Description

1

WJ070024/025

Valve Body

2

WJ070003/168

Valve seat

3

WJ070004/590

Inlet Lens Ring

4

WJ070005/551

Valve Stem

5

WJ070006/168

Gasket Support

6

WJ070007/527

Support

7

WJ070008/527

Guide Bushing

8

WJ070009/150

HP-Sealing

9

4.3x2.4

O-Ring

10

WJ070029/025

Stem

11

WJ070027/133

Adjusting Nut

12

WJ070028/256

Collet

13

WJ10026/256

Counter Nut

14

WJ070014/004

Thrust Piece

15

G01M6x8/359

Thread Pin

16

WJ070015/320

Cylinder

17

WJ070016/249

Bottom

18

WJ070031/249

Cover

19

WJ070018/249

Piston

20

OR0650030/151

O-Ring 65x32x

21


O-Ring 9.5x3

22


O-Ring 7.5x2.5

23

dr070001/220

Sealing Ring

24

S0372x2.5/426

Safety Ring(2x)

25

450224125/255

Cup Spring(4x)

26

WJ070033/025

Connection Ring

27

WJ070020/004

Adjusting Screw

29

AS013001/220

Scrupper Ring

30

WJ070025/593

Collimation tube

31

VDS143401/256

Gland Nut

32

WJ070032/153

Nozzle Support

33

D02M8x1/359

Hexagon Nut(2x)

34

220320050/220

Shim Ring(2x)

35

VDS064401/256

Gland Nut

36

VDR064401/261

Sleeve
