FLOW Waterjet Head Parts

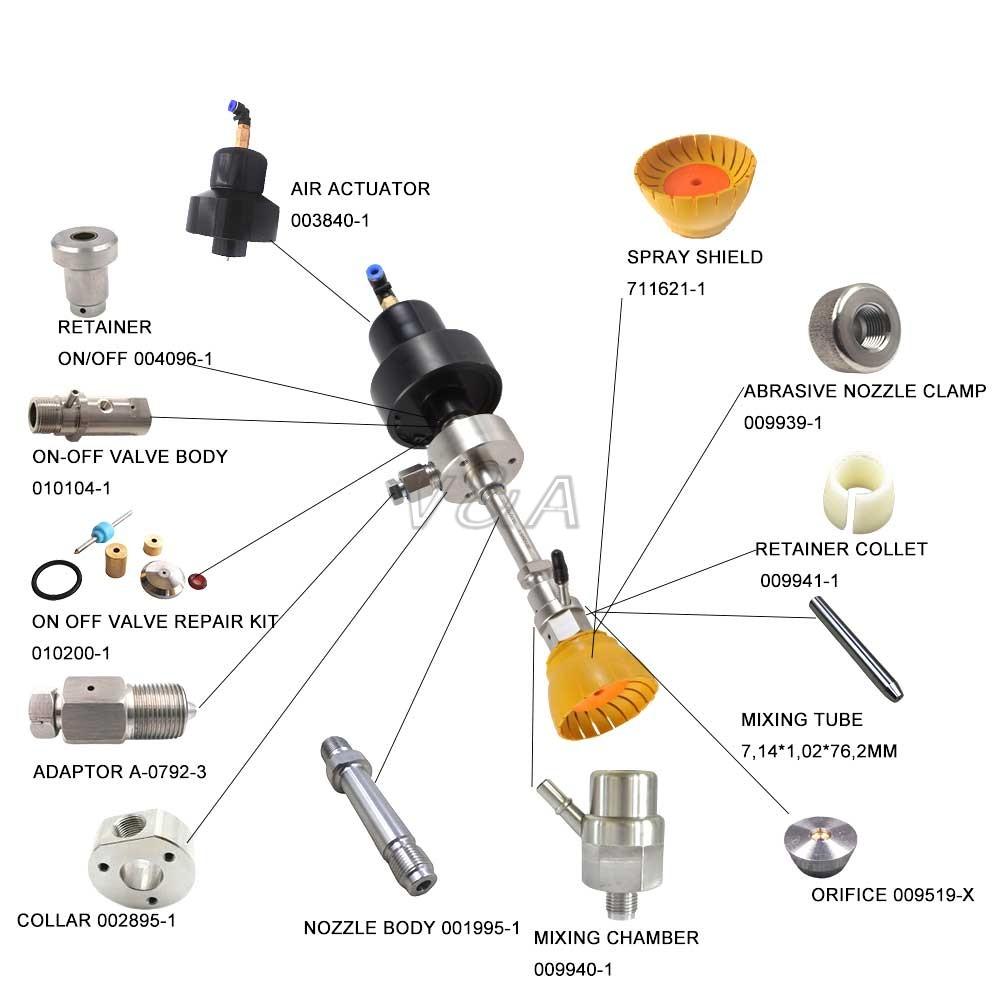

P3
Item | Part Number | Description |
1 | 003840-1 | Air Actuator |
2 | 004096-1 | Retainer ON/OFF |
3 | 010104-1 | ON/OFF VALVE BODY |
4 | 010200-1 | On/Off Valve Repair Kit |
5 | A-0792-3 | Adaptor |
7 | 002895-1 | Collar |
8 | 001995-1 | Nozzle body |
9 | 009940-1 | Mixing chamber |
10 | 009519-х | ORIFICE |
11 | MIXING TUBE | |
12 | 009941-1 | Retainer Collet |
13 | 009939-1 | Abrasive Nozzle Clamp |
14 | 711621-1 | Spray Shield |

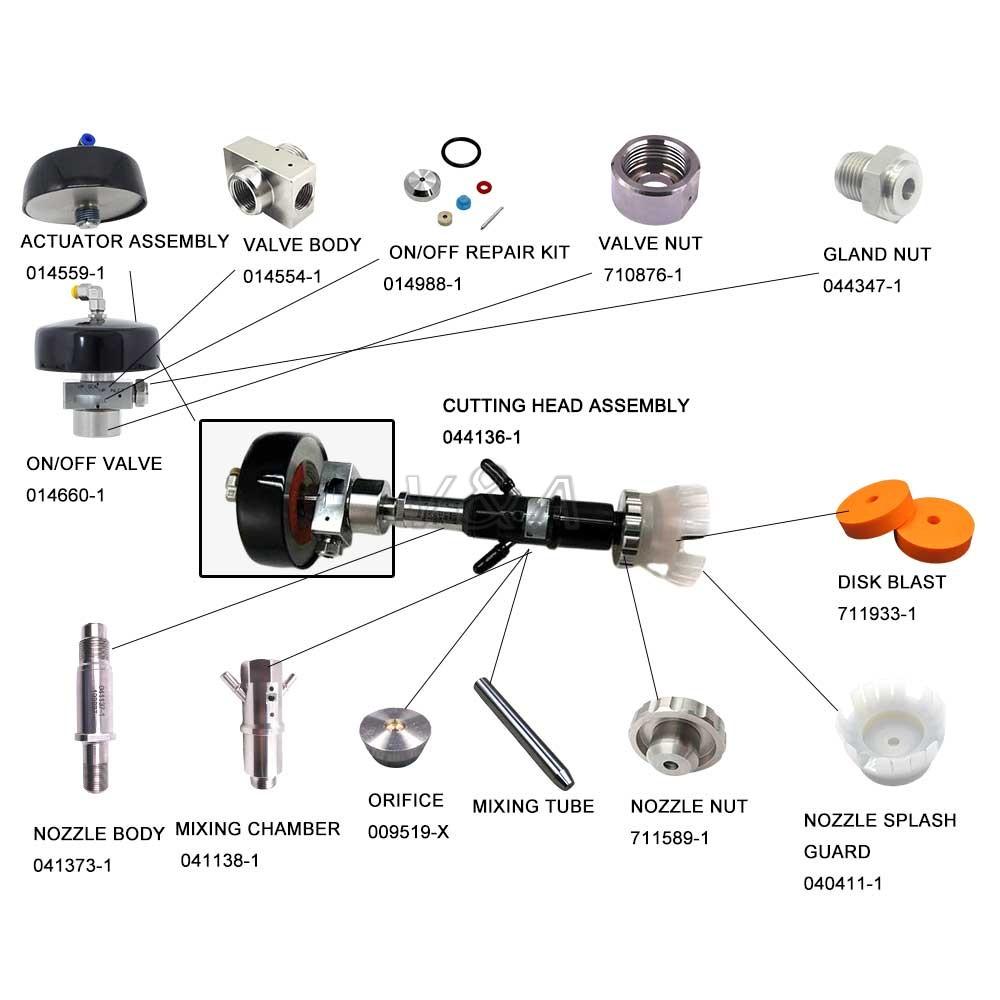

P4
Item | Part Number | Description |
1 | 014559-1 | Actuator Assembly |
2 | 014554-1 | Valve body |
3 | 014988-1 | On/Off repair kit |
4 | 710876-1 | Valve nut |
5 | 044347-1 | Gland Nut |
6 | 041373-1 | Nozzle body |
7 | 041138-1 | Mixing chamber |
8 | Orifice | |
9 | Mixing tube | |
10 | 711589-1 | Nozzle nut |
11 | 040411-1 | Nozzle Splash Guard |
12 | 711933-1 | Disk blast |

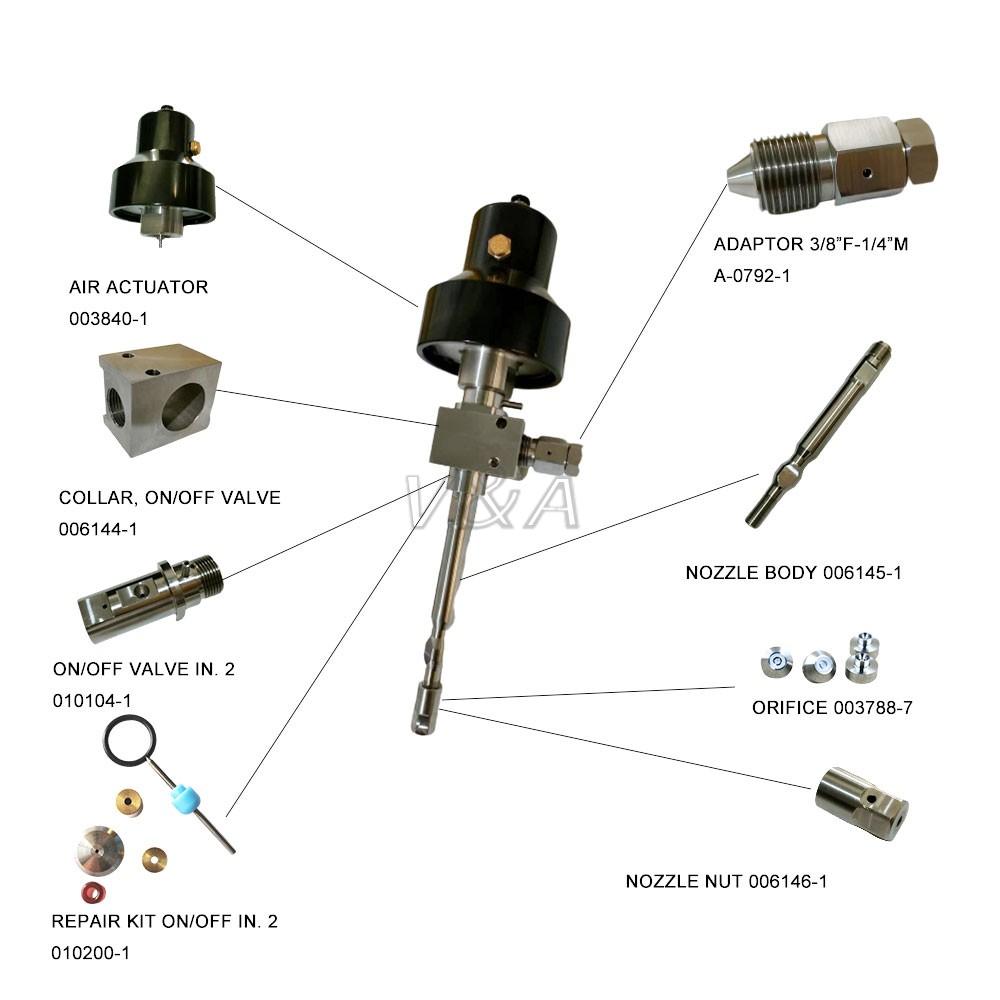

Standard mount
Item | Part Number | Description |
1 | 003840-1 | Air Actuator |
2 | 006144-1 | Collar, On/Off Valve |
3 | 014988-1 | On/Off repair kit |
4 | 010104-1 | On/Off valve In. 2 |
5 | 010200-1 | Repair kit On/Off In. 2 |
6 | A-0792-1 | Adaptor 3/8”F-1/4”M |
7 | 006145-1 | Nozzle body |
8 | 003788-7 | Orifice |
9 | 006146-1 | Nozzle Nut |
