100HP Pump Parts

100HP Pump Parts

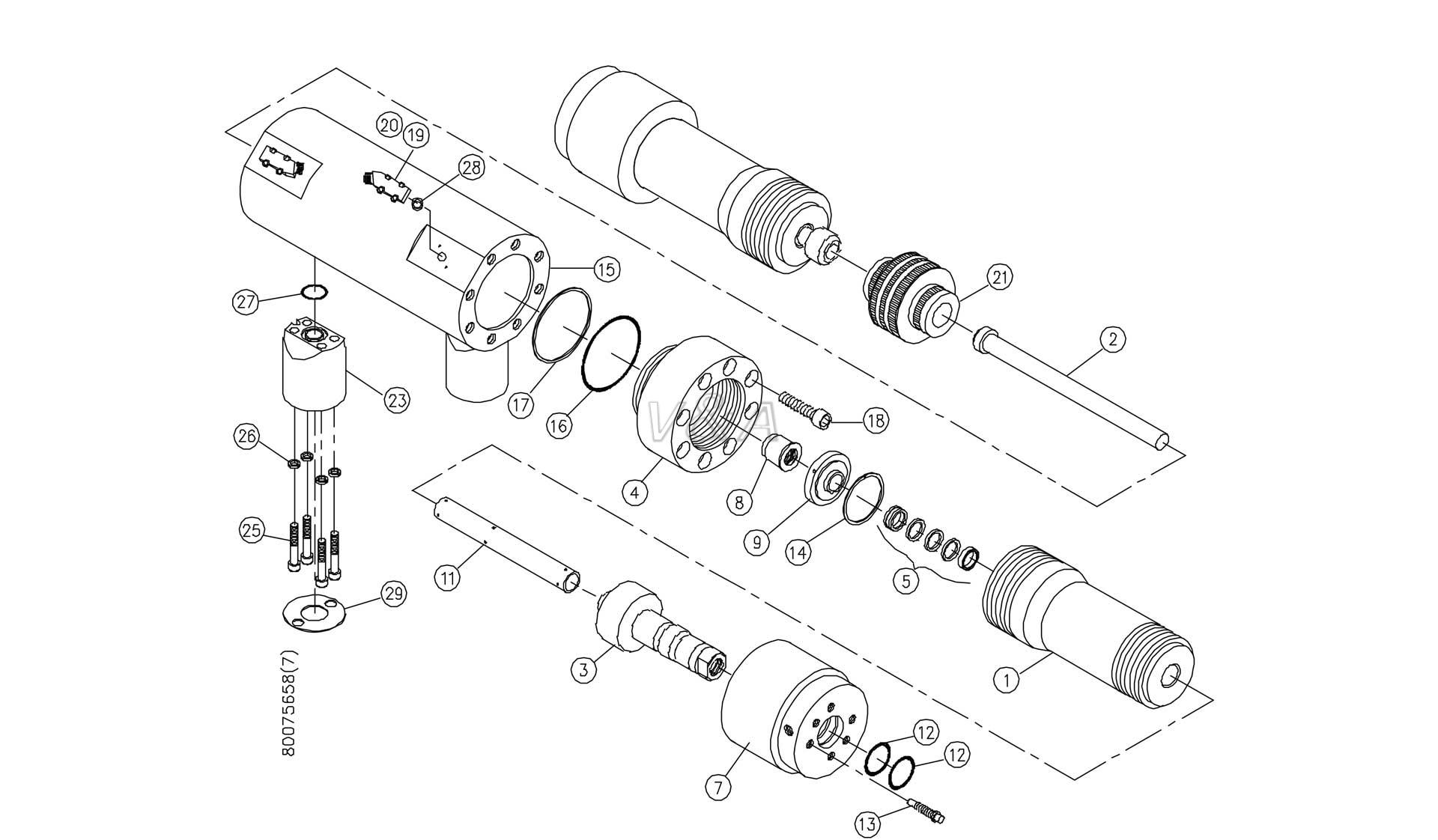

SL-VI 100HP.jpg




Item

Part Number

Description

Item

Part Number

Description

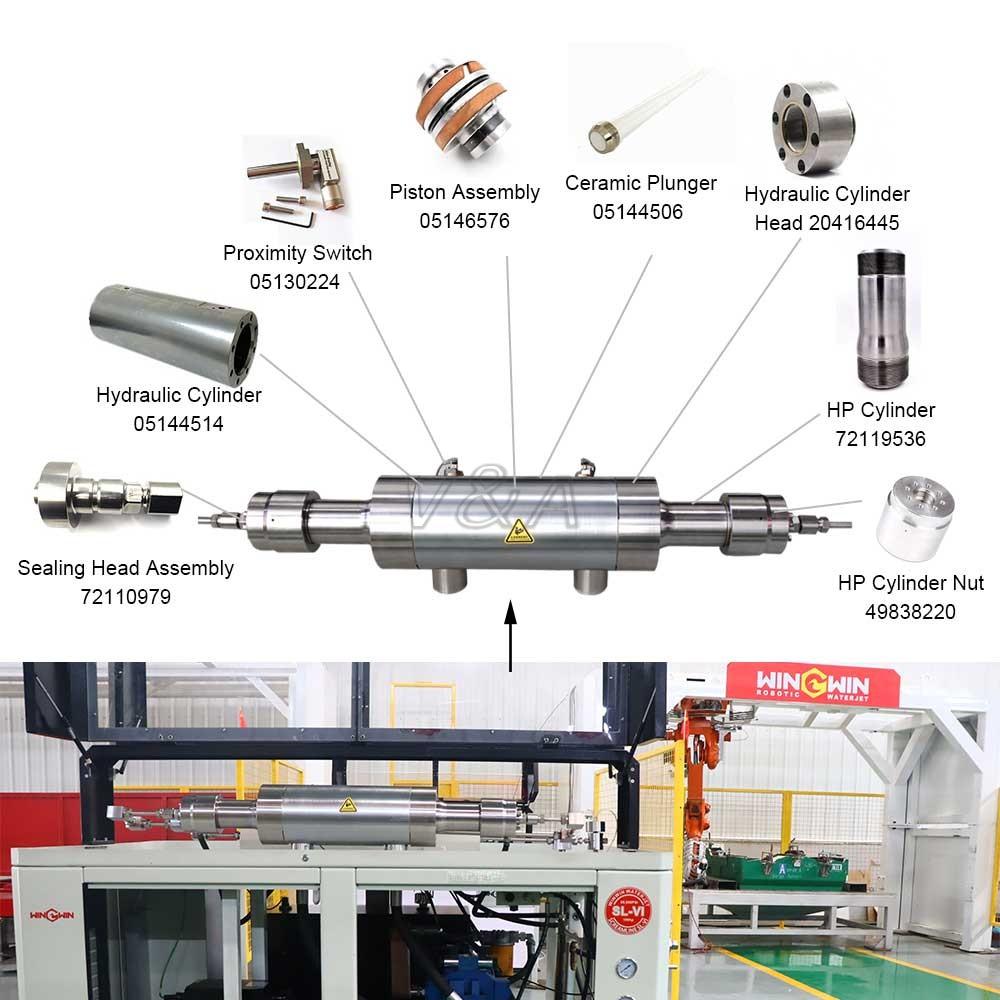

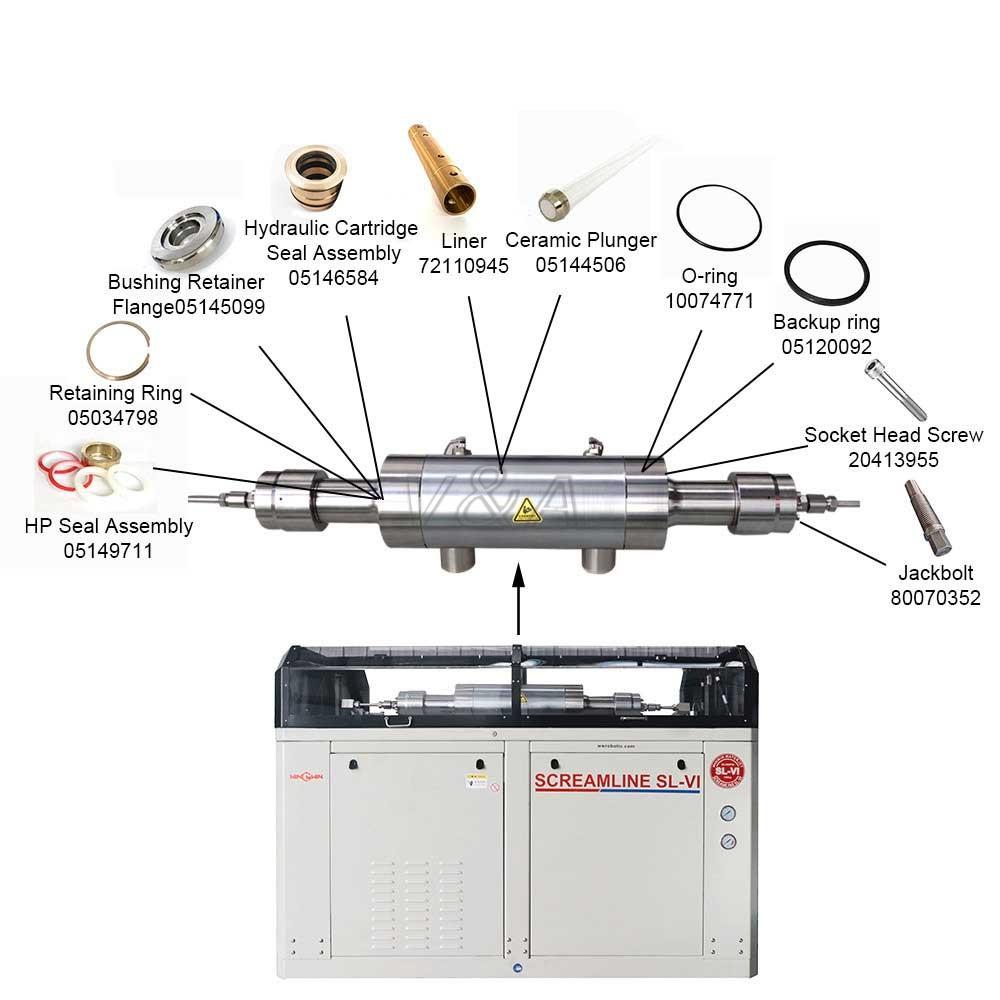

1

72119536



HP Cylinder



16

05120092



Backup Ring, 5.25 x 5.50

2

05144506



Ceramic Plunger



17

10074771



O-Ring, 5.25 x 5.50 x .13

3

72110979

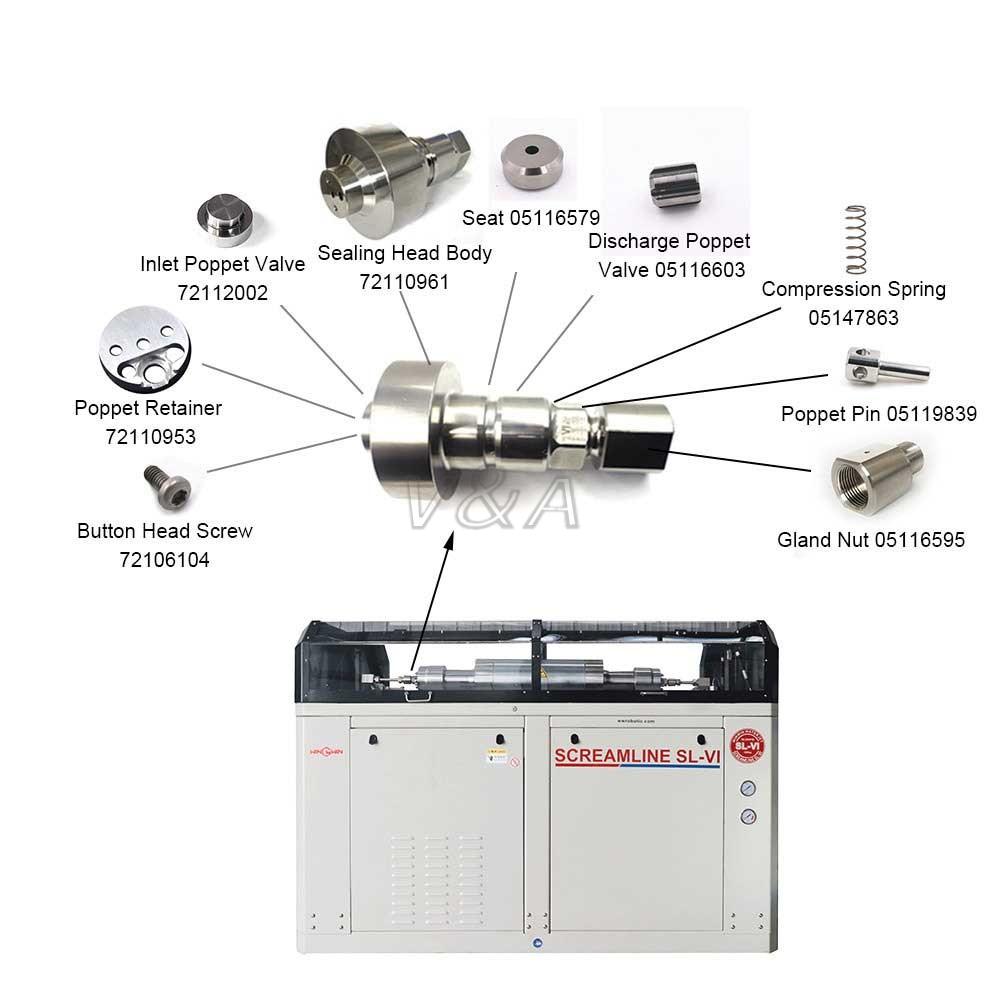

Sealing Head Assembly

18

20413955



Socket Head Screw, 3/4-16 x 3-1/4

4

20416445



Hydraulic Cylinder Head

19

05130224



Proximity Switch, 20-250V AC/DC

5

05149711



HP Seal Assembly



20

95119012



Socket Head Screw, 1/4 x 20 x 1

7

49838220



HP Cylinder Nut, HSEC

21

05146576

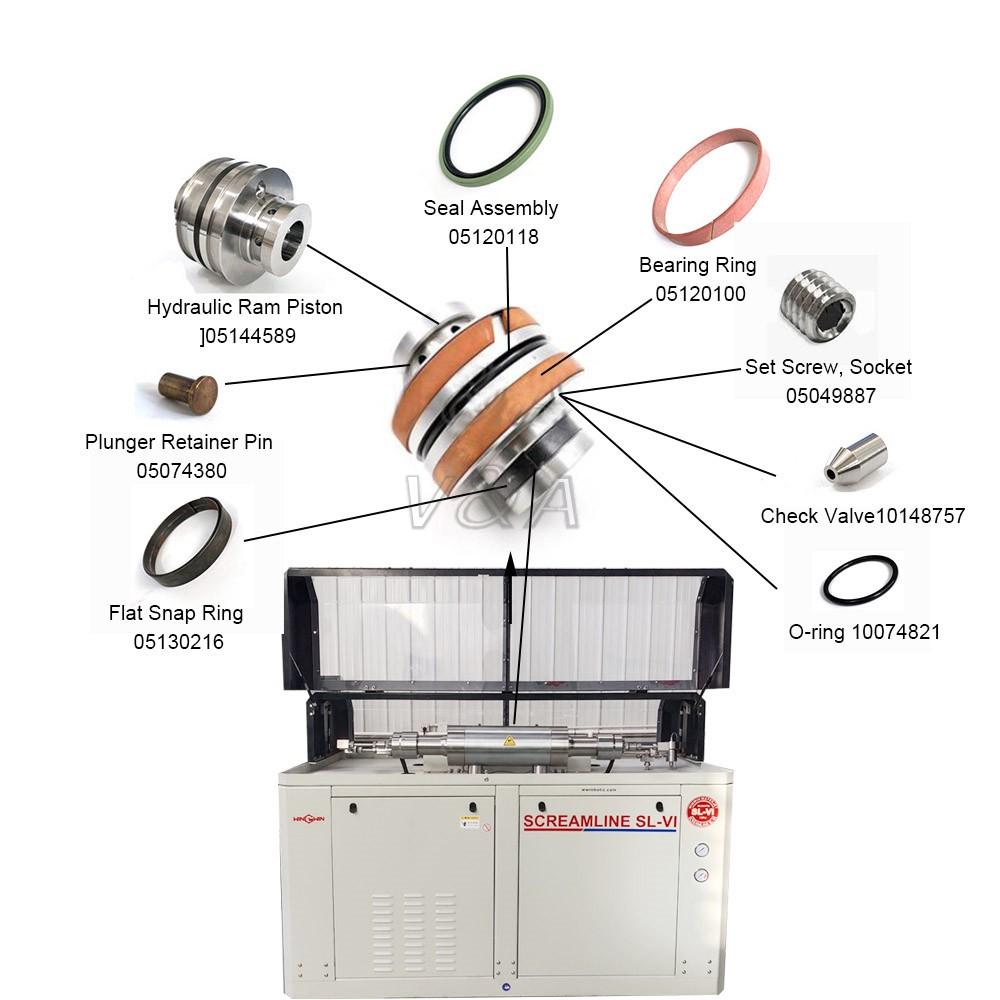

Piston Assembly



8

05146584



Hydraulic Cartridge Seal Assembly

23

05144522



Topworks Support



9

05145099



Bushing Retainer Flange

25

05041058



Socket Head Screw, 3/8-16 x 2-1/4

11

72110945



Liner, HP Cylinder

26

95688743



Lock Washer, .38

12

10074920



O-Ring, 1.75 x .94 x .09

27

10118206



O-Ring, 1.31 x 1.56 x .13

13

80070352



Jackbolt, 7/16-20 x 2.31

28

05144183



Spacer Assembly, Proximity Switch

14

05034798



Retaining Ring



29

05146592



Gasket, Topworks Support

15

05144514



Hydraulic Cylinder
